Carel Quick Guide

Complete Carel Frigbot Setup

Frigbot® and Carel® controllers get along like a house on fire (without any actual fire thankfully!).

Installation and configuration of a new Frigbot is super simple - there is also an extra current sensing feature that you can set up with a minimum of fuss.

This is what you will need:

  1. Smartphone
  2. Frigbot
  3. QR Code Reader
  4. Equipment that already has a Carel controller fitted
  5. A few connectors and some mains power cable

Plug in Controller

Turn the power off to your controller.

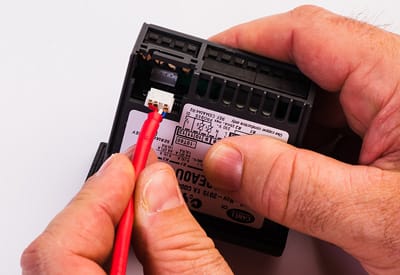

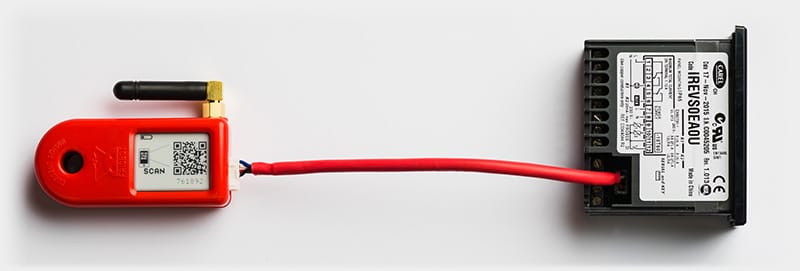

Plug the small end of the RED CABLE into the Carel controller.

Plug in Controller

Ensure it is fully plugged in

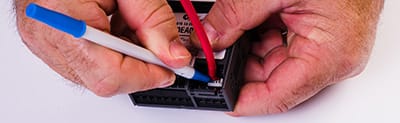

You may need to use a pen to push it all the way into the plug.

Ensure it is fully plugged in

Optional Current Sensor

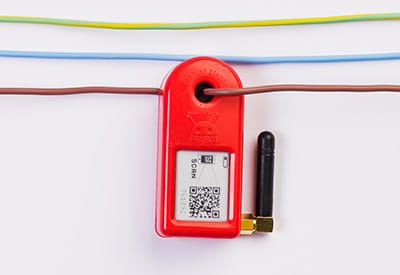

Pass the compressor power cable through the Frigbot current sensor (for qualified tradespersons ONLY)

Optional Current Sensor

Scan QRCode

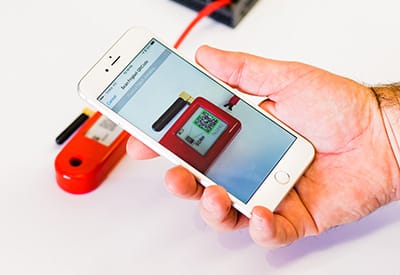

  1. Open your QR code app on your smartphone
  2. Scan the Frigbot QR Code
Scan QRCode

Configure

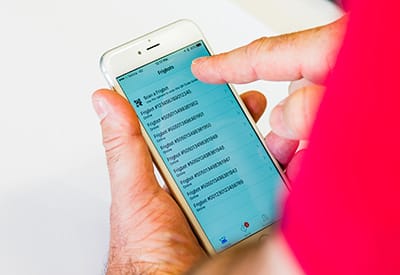

Configure your new Frigbot

  1. Agree to the Frigbot Subscription Agreement
  2. Where is the Frigbot installed (the customer's details)
  3. What is the Frigbot plugged into (the equipment details)
  4. Alerts (optional) you can set up alerts now or later.
Configure

Congratulations! You're finished
